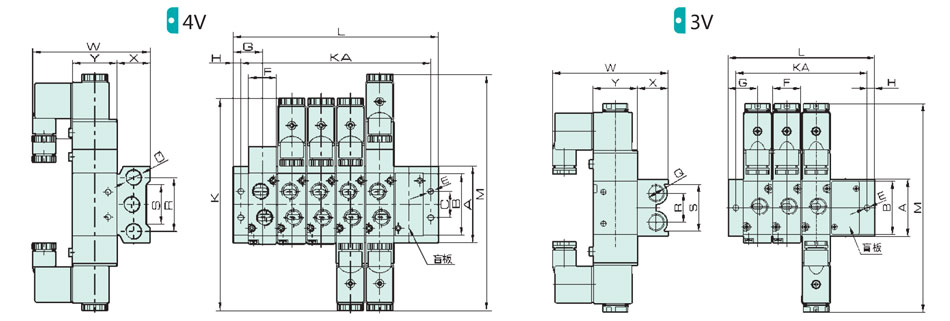

外形尺寸

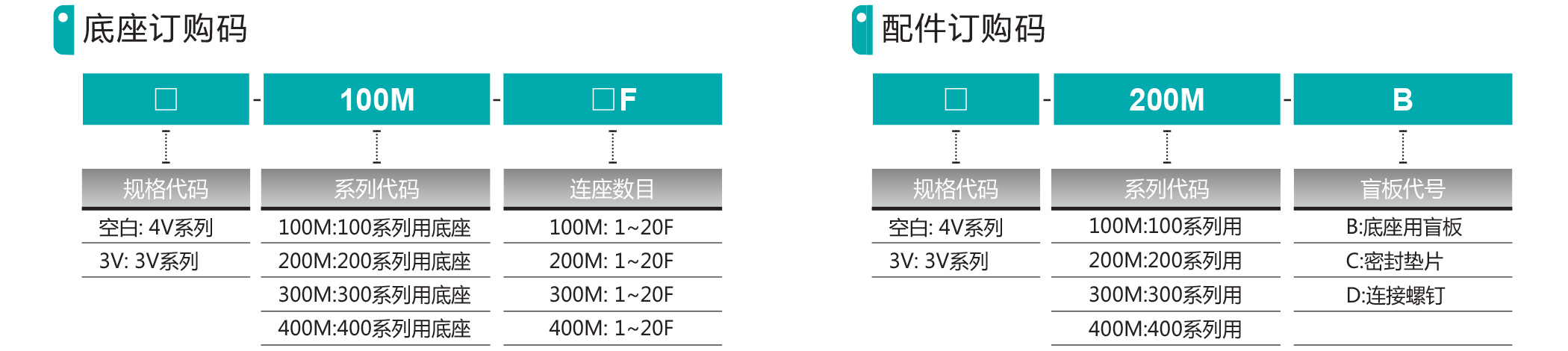

規格參數
|
內徑/符號 |
A |
B |
C |
E |
F |
G |
K |
KA |
L |
M |
Q |
R |
S |
W |
X |
Y |
|
4V-100M-□F |
58 |
43 |
20 |
4.2 |
18.3 |
19 |
140 |
(n-1)*19+28 |
(n-1)*19+38 |
155 |
G1/4 |
40 |
30 |
78.5 |
25 |
27 |
|
4V-200M-□F |
59 |
50 |
21 |
4.3 |
22.2 |
23 |
170 |
(n-1)*23+34 |
(n-1)*23+46 |
189 |
G1/4 |
43 |
32 |
92.5 |
26 |
35 |
|
4V-300M-□F |
75 |
64 |
26 |
4.5 |
27.3 |
27 |
189 |
(n-1)*28+42 |
(n-1)*28+54 |
208 |
G3/8 |
53 |
48 |
99 |
30 |
40 |
|
4V-400M-□F |
98 |
94 |
32 |
5.5 |
34.3 |
31.5 |
222 |
(n-1)*35+49 |
(n-1)*35+63 |
243 |
G1/2 |
68 |
67 |
112 |
38 |
50 |
|
內徑/符號 |
A |
B |
E |
F |
G |
H |
KA |
L |
M |
Q |
R |
S |
W |
X |
Y |
|
3V-100M-□F |
31 |
30 |
4.5 |
18 |
18.5 |
4.5 |
(n-1)*19+28 |
(n-1)*19+37 |
130.8 |
G/8 |
17.5 |
25 |
72.8 |
19 |
27 |
|
3V-200M-□F |
45 |
43 |
45 |
22 |
23 |
6 |
(n-1)*23+34 |
(n-1)*23+46 |
163 4 |
G1/4 |
23 |
37 |
90.9 |
24 |
35 |
|
3V-300M-□F |
50 |
47 |
45 |
27 |
27 |
6 |
(n-1)*28+42 |
(n-1)*28+54 |
190 5 |
G3/8 |
29 |
42 |
97.4 |
28 |
40 |
|
3V-400M-□F |
62.5 |
62.5 |
5.5 |
34 |
31.5 |
7 |
(n-11)*35+49 |
(n-1)*35+63 |
191.9 |
G1/2 |
35.5 |
51.5 |
109.4 |
35 |
50 |
