性能特點
1. 提升了產品面對各種應用及環境的適應性,改采用精密拋光活塞桿,更加提升前防塵圈使用壽命。
2. 調整結構至最佳狀態,并保證產品平穩運行。
3. 全新的活塞桿及本體鉚合工藝,提升產品質感。
4. 配合企業顏色規劃,賦予其新的企業色系及外觀細節。

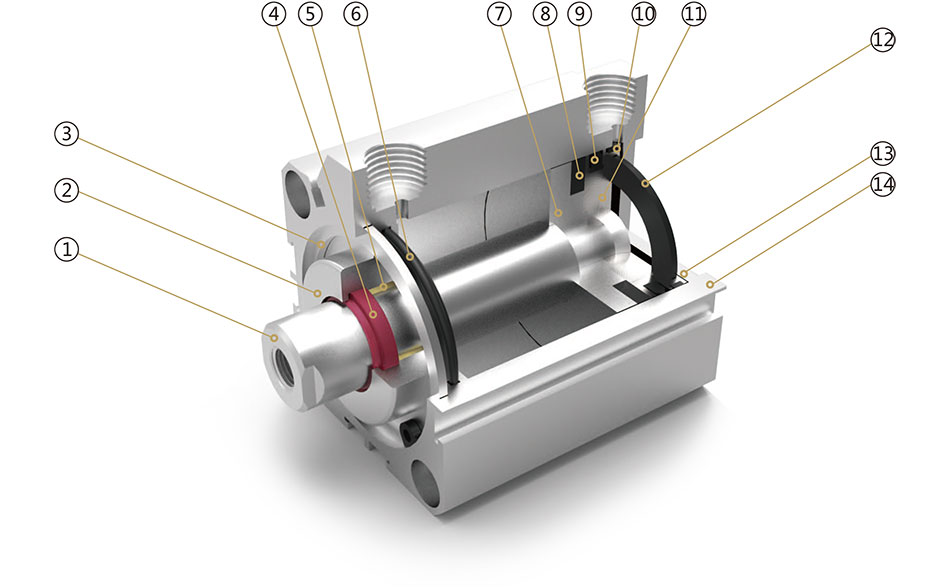

內部結構圖
零件表
編號 |
名稱 |
編號 |
名稱 |
1 |
活塞桿 |
8 |
磁鐵 |
2 |
前蓋 |
9 |
活塞密封圈 |
3 |
C形孔用扣環 |
10 |
耐磨環 |
4 |
軸心密封圈 |
11 |
磁鐵座 |
5 |
DU干軸承 |
12 |
防撞墊 |
6 |
O形圈 |
13 |
后蓋 |
7 |
活塞 |
14 |
缸體 |
訂購碼
規格參數
內徑 (mm) |
12 |
16 | 20 | 25 |
32 |
40 |
50 |
63 |
80 |
100 | |
動作形式 |
復動型 |
||||||||||
單動押出型/單動引入型 |
- | ||||||||||
工作介質 |
空 氣 |
||||||||||
使用壓力范圍 |
復動型 |
0.1~1.0MPa |
|||||||||
單動型 |
0.2~0.9MPa |
- |
|||||||||
保證耐壓力 |
1.5 MPa |
||||||||||
使用溫度范圍 |
-20~80 ℃ |
||||||||||
使用速度范圍 |
復動型 |
30~500 mm/s |
30 ~ 350 mm/s |
30 ~ 250 mm/s |
|||||||
單動型 |
50~500 mm/s |
- |
|||||||||
接管口徑 |
M5×0.8 |
G1/8" |
G1/4" |
G3/8" |

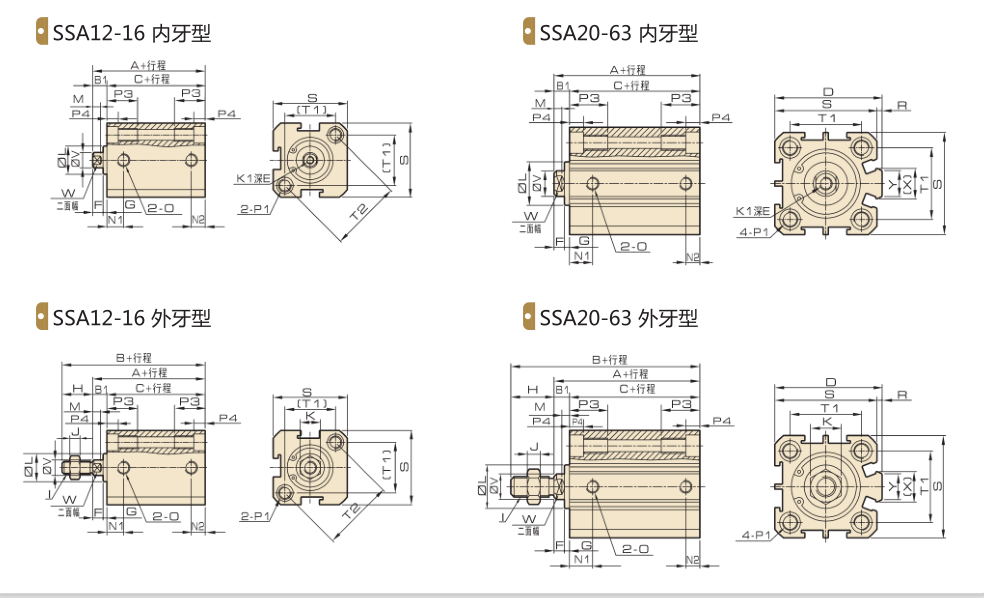

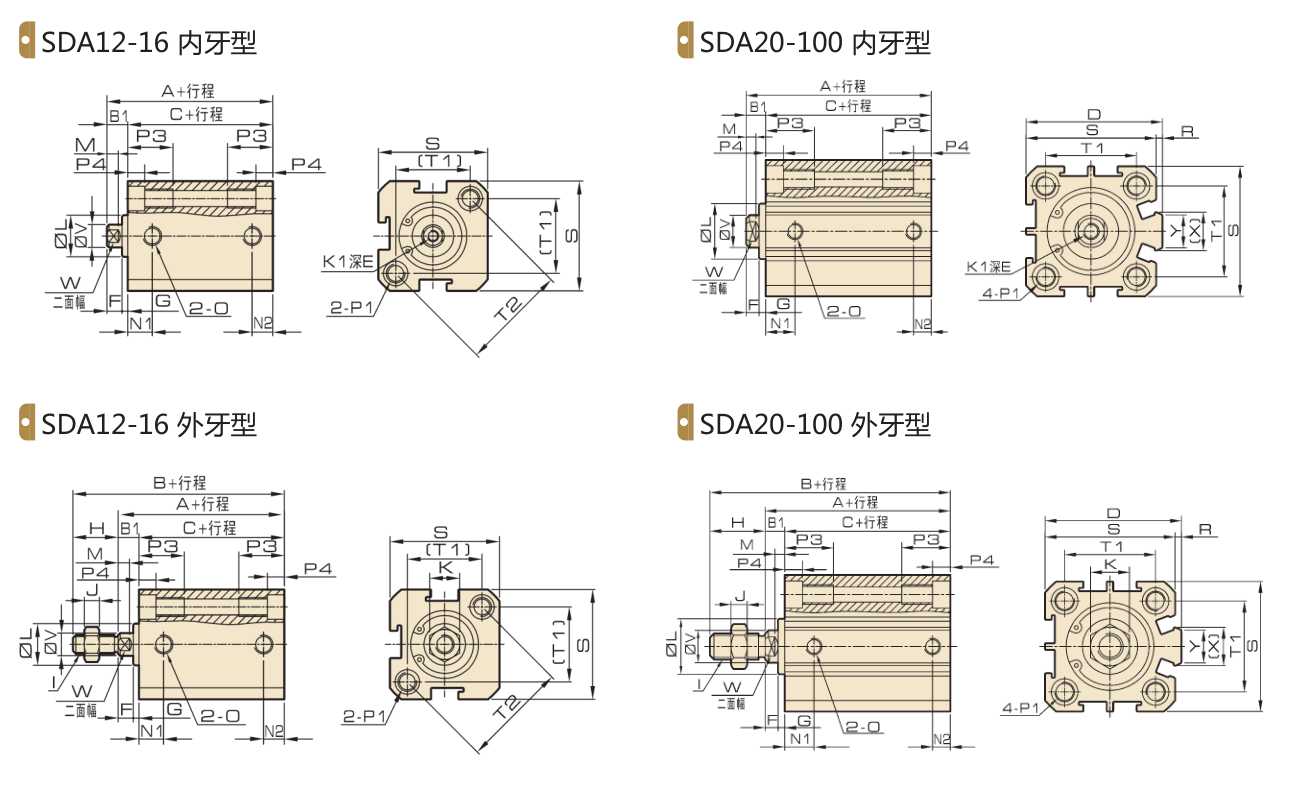

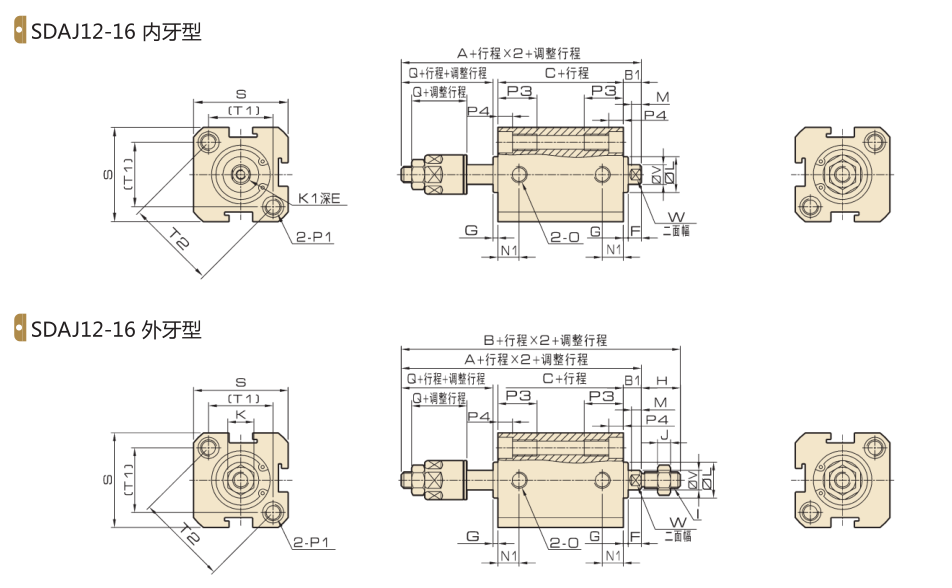

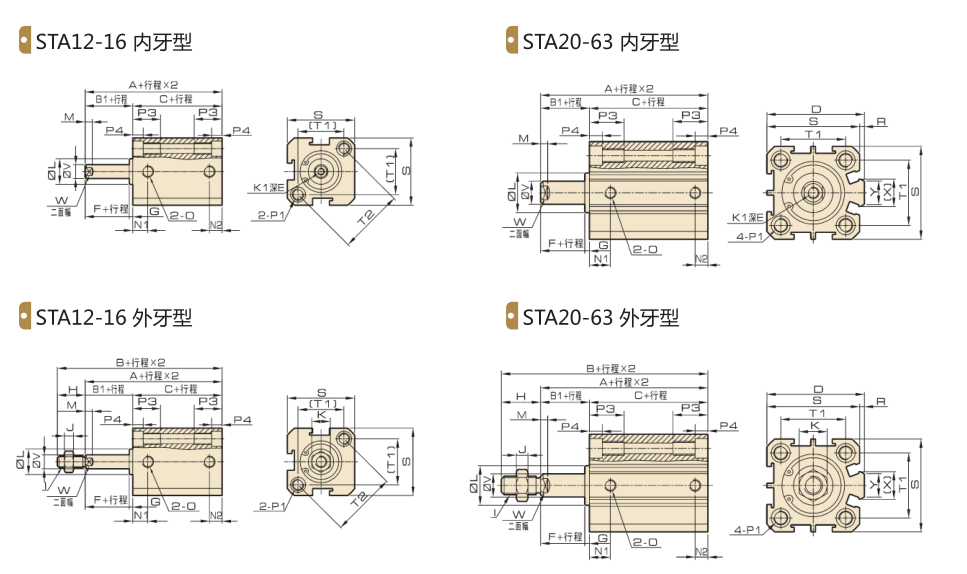

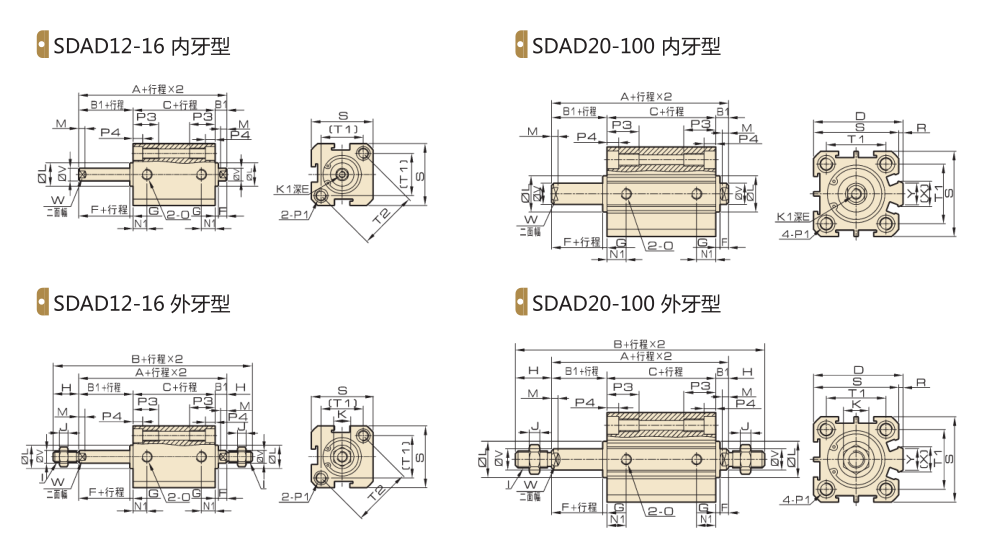

外形尺寸
尺寸表
缸徑/符號 |
A |
B |
C |
B1 |
D |
E |
F |
G |
H |
I |
J |
K |
K1 |
L |
M | |||
型式 |
標準型 |
附磁型 |
標準型 |
附磁型 |
標準型 |
附磁型 |
||||||||||||
12 |
22 |
32 |
34 |
44 |
17 |
27 |
5 |
- |
6 |
4 |
2 |
12 |
M5×0.8 |
4 |
8 |
M3×0.5 |
10 |
3 |
16 |
24 |
34 |
36 |
46 |
18.5 |
28.5 |
5.5 |
- |
6 |
4 |
2 |
12 |
M5×0.8 |
4 |
8 |
M3×0.5 |
11 |
3 |
20 |
25 |
35 |
40 |
50 |
19.5 |
29.5 |
5.5 |
36 |
8 |
4 |
1.5 |
15 |
M6×1.0 |
5 |
10 |
M4×0.7 |
13 |
3 |
25 |
27 |
37 |
44 |
54 |
21 |
31 |
6 |
42 |
10 |
4 |
2 |
17 |
M8×1.25 |
6 |
14 |
M5×0.8 |
17 |
3 |
32 |
31.5 |
41.5 |
49.5 |
59.5 |
24.5 |
34.5 |
7 |
50 |
12 |
4 |
3 |
18 |
M10×1.25 |
6 |
17 |
M6×1.0 |
22 |
3 |
40 |
33 |
43 |
61 |
71 |
26 |
36 |
7 |
58.5 |
12 |
4 |
3 |
28 |
M14×1.5 |
8 |
22 |
M8×1.25 |
28 |
3 |
50 |
37 |
47 |
65 |
75 |
28 |
38 |
9 |
71.5 |
15 |
5 |
4 |
28 |
M18×1.5 |
9 |
27 |
M10×1. 5 |
38 |
3 |
63 |
41 |
51 |
69 |
79 |
32 |
42 |
9 |
84.5 |
15 |
5 |
4 |
28 |
M18×1.5 |
9 |
27 |
M10×1. 5 |
40 |
3 |
80 |
52 |
62 |
85 |
95 |
41 |
51 |
11 |
104 |
20 |
6 |
5 |
33 |
M22×1.5 |
13 |
32 |
M14×1.5 |
45 |
4 |
100 |
63 |
73 |
101 |
111 |
51 |
61 |
12 |
124 |
20 |
7 |
5 |
38 |
M26×1.5 |
12 |
36 |
M18×1.5 |
55 |
4 |
缸徑/符號 |
N1 |
N2 |
O |
P1 |
P3 |
P4 |
R |
S |
T1 |
T2 |
V |
W |
X |
Y |
||
行程 |
S=5 |
S>5 |
S=5 |
S>5 |
||||||||||||
12 |
7.5 |
5 |
M5×08 |
雙邊: Φ6.5、牙: M5×0.8、通孔: Φ4.2 |
12 |
4.5 |
- |
25 |
16.3 |
23 |
6 |
5 |
- |
- |
||
16 |
8 |
5 |
5.5 |
M5×0.8 |
雙邊: Φ6.5、牙: M5×0.8、通孔: Φ4.2 |
12 |
4.5 |
- |
29 |
19.8 |
28 |
6 |
5 |
- |
- |
|
20 |
8.5 |
5.5 |
M5×0.8 |
雙邊: Φ6.5、牙: M5×0.8、通孔: Φ4.2 |
14 |
4.5 |
2 |
34 |
24 |
- |
8 |
6 |
11.2 |
10 |
||
25 |
9 |
5.5 |
M5×08 |
雙邊: Φ8.2、牙: M6×1、通孔: Φ4.6 |
15 |
5.5 |
2 |
40 |
28 |
- |
10 |
8 |
12 |
10 |
||
32 |
9 |
6.5 |
8 |
G1/8 |
雙邊: Φ8.2、牙: M6×1、通孔: Φ4.6 |
16 |
5.5 |
6 |
44 |
34 |
- |
12 |
10 |
18 |
14 |
|
40 |
9 |
7.5 |
G1/8 |
雙邊: Φ10、牙: M8×1.25、通孔: Φ6.7 |
20 |
7.5 |
6.5 |
52 |
40 |
- |
16 |
14 |
21 |
14 |
||
50 |
8 |
10.5 |
8 |
10.5 |
G1/4 |
雙邊: Φ11、牙: M8×1.25、通孔: Φ6.7 |
25 |
8.5 |
9.5 |
62 |
48 |
- |
20 |
17 |
29.5 |
19 |
63 |
9.5 |
11 |
9.5 |
11 |
G1/4 |
雙邊: Φ11、牙: M8×1.25、通孔: Φ6.7 |
25 |
8.5 |
9.5 |
75 |
60 |
- |
20 |
17 |
26 |
19 |
80 |
11.5 |
14 |
11.5 |
14 |
G3/8 |
雙邊: Φ15、牙: M12×1.75、通孔: Φ10.3 |
25 |
10.5 |
10 |
94 |
74 |
- |
25 |
22 |
36 |
26 |
100 |
15 |
20 |
15 |
18 |
G3/8 |
雙邊: Φ 17.5、 牙: M14×2、 通孔: Φ 11.3 |
30 |
13 |
10 |
114 |
90 |
- |
32 |
27 |
35.5 |
26 |
缸徑/符號 |
A |
B |
C |
B1 |
D |
E |
F |
G |
H |
I |
J |
K |
K1 |
|||||||||
型式 |
標準型 |
附磁型 |
標準型 |
附磁型 |
標準型 |
附磁型 |
||||||||||||||||
行程 |
0 <S≤10 |
10 <S≤30 |
0 <S≤10 |
10 <S≤30 |
0 <S≤10 |
10 <S≤30 |
0 <S≤10 |
10 <S≤30 |
0 <S≤10 |
10 <S≤30 |
0 <S≤10 |
10 <S≤30 |
||||||||||
12 |
32 |
42 |
42 |
52 |
44 |
54 |
54 |
64 |
27 |
37 |
37 |
47 |
5 |
- |
6 |
4 |
2 |
12 |
M5×0.8 |
4 |
8 |
M3x0.5 |
16 |
34 |
44 |
44 |
54 |
46 |
56 |
56 |
66 |
28.5 |
38.5 |
38.5 |
48.5 |
5.5 |
- |
6 |
4 |
2 |
12 |
M5×0.8 |
4 |
8 |
M3x0.5 |
20 |
35 |
45 |
45 |
55 |
50 |
60 |
60 |
70 |
29.5 |
39.5 |
39.5 |
49.5 |
5.5 |
36 |
8 |
4 |
1.5 |
15 |
M6×1.0 |
5 |
10 |
M4x0.7 |
25 |
37 |
47 |
47 |
57 |
54 |
64 |
64 |
74 |
31 |
41 |
41 |
51 |
6 |
42 |
10 |
4 |
2 |
17 |
M8×1.25 |
6 |
14 |
M5x0.8 |
32 |
41.5 |
51.5 |
51.5 |
61.5 |
59.5 |
69.5 |
69.5 |
79.5 |
34.5 |
44.5 |
44.5 |
54.5 |
7 |
50 |
12 |
4 |
3 |
18 |
M10×1.25 |
6 |
17 |
M6xl.O |
40 |
43 |
53 |
53 |
63 |
71 |
81 |
81 |
91 |
36 |
46 |
46 |
56 |
7 |
58.5 |
12 |
4 |
3 |
28 |
M14×1.5 |
8 |
22 |
M8xl.25 |
50 |
47 |
57 |
57 |
67 |
75 |
85 |
85 |
95 |
38 |
48 |
48 |
58 |
9 |
71.5 |
15 |
5 |
4 |
28 |
M18×1.5 |
9 |
27 |
M10xl.5 |
63 |
51 |
61 |
61 |
71 |
79 |
89 |
89 |
99 |
42 |
52 |
52 |
62 |
9 |
84.5 |
15 |
5 |
4 |
28 |
M18×1.5 |
9 |
27 |
M10xl.5 |
80 |
62 |
72 |
72 |
82 |
95 |
105 |
105 |
115 |
51 |
61 |
61 |
71 |
11 |
104 |
20 |
6 |
5 |
33 |
M22×1.5 |
13 |
32 |
M14xl.5 |
100 |
73 |
83 |
83 |
93 |
111 |
121 |
121 |
131 |
61 |
71 |
71 |
81 |
12 |
124 |
20 |
7 |
5 |
38 |
M26×1.5 |
12 |
36 |
M18xl.5 |
缸徑/符號 |
L |
M |
N1 |
N2 |
O |
P1 |
P3 |
P4 |
R |
S |
T1 |
T2 |
V |
W |
X |
Y |
||
行程 |
S=5 |
S>5 |
S=5 |
S>5 |
||||||||||||||
12 |
10 |
3 |
7.5 |
5 |
M5×0.8 |
雙邊: Φ6.5、牙: M5×0.8、通孔: Φ4.2 |
12 |
4.5 |
- |
25 |
16.3 |
23 |
6 |
5 |
- |
- |
||
16 |
11 |
3 |
8 |
5 |
5.5 |
M5×0.8 |
雙邊: Φ6.5、牙: M5×0.8、通孔: Φ4.2 |
12 |
4.5 |
- |
29 |
19.8 |
28 |
6 |
5 |
- |
- |
|
20 |
13 |
3 |
8.5 |
5.5 |
M5×0.8 |
雙邊: Φ6.5、牙: M5×0.8、通孔: Φ4.2 |
14 |
4.5 |
2 |
34 |
24 |
- |
8 |
6 |
11.2 |
10 |
||
25 |
17 |
3 |
9 |
5.5 |
M5×0.8 |
雙邊: Φ8.2、牙: M6×1、通孔: Φ4.6 |
15 |
5.5 |
2 |
40 |
28 |
- |
10 |
8 |
12 |
10 |
||
32 |
22 |
3 |
9 |
6.5 |
8 |
G1/8 |
雙邊: Φ8.2、牙: M6×1、通孔: Φ4.6 |
16 |
5.5 |
6 |
44 |
34 |
- |
12 |
10 |
18 |
14 |
|
40 |
28 |
3 |
9 |
7.5 |
G1/8 |
雙邊: Φ10、牙: M8×1.25、通孔: Φ6.7 |
20 |
7.5 |
6.5 |
52 |
40 |
- |
16 |
14 |
21 |
14 |
||
50 |
38 |
3 |
8 |
10.5 |
8 |
10.5 |
G1/4 |
雙邊: Φ11、牙: M8×1.25、通孔: Φ6.7 |
25 |
8.5 |
9.5 |
62 |
48 |
- |
20 |
17 |
29.5 |
19 |
63 |
40 |
3 |
9.5 |
11 |
9.5 |
11 |
G1/4 |
雙邊: Φ11、牙: M8×1.25、通孔: Φ6.7 |
25 |
8.5 |
9.5 |
75 |
60 |
- |
20 |
17 |
26 |
19 |
80 |
45 |
4 |
11.5 |
14 |
11.5 |
14 |
G3/8 |
雙邊: Φ15、牙: M12×1.75、通孔: Φ10.3 |
25 |
10.5 |
10 |
94 |
74 |
- |
25 |
22 |
36 |
26 |
100 |
55 |
4 |
15 |
20 |
15 |
18 |
G3/8 |
雙邊: Φ17.5、牙: M14×2、通孔: Φ11.3 |
30 |
13 1 |
10 |
114 |
90 |
- |
32 |
27 |
35.5 |
26 |
缸徑/符號 |
A |
B |
C |
B1 |
D |
E |
F |
G |
H |
I |
J |
K |
K1 |
|||||||||
型式 |
標準型 |
附磁型 |
標準型 |
附磁型 |
標準型 |
附磁型 |
||||||||||||||||
行程 |
0 <S≤10 |
10 <S≤30 |
0 <S≤10 |
10 <S≤30 |
0 <S≤10 |
10 <S≤30 |
0 <S≤10 |
10 <S≤30 |
0 <S≤10 |
10 <S≤30 |
0 <S≤10 |
10 <S≤30 |
||||||||||
12 |
32 |
42 |
42 |
52 |
44 |
54 |
54 |
64 |
27 |
37 |
37 |
47 |
5 |
- |
6 |
4 |
2 |
12 |
M5×0.8 |
4 |
8 |
M3×0.5 |
16 |
34 |
44 |
44 |
54 |
46 |
56 |
56 |
66 |
28.5 |
38.5 |
38.5 |
48.5 |
5.5 |
- |
6 |
4 |
2 |
12 |
M5×0.8 |
4 |
8 |
M3×0.5 |
20 |
35 |
45 |
45 |
55 |
50 |
60 |
60 |
70 |
29.5 |
39.5 |
39.5 |
49.5 |
5.5 |
36 |
8 |
4 |
1.5 |
15 |
M6×1.0 |
5 |
10 |
M4×0.7 |
25 |
37 |
47 |
47 |
57 |
54 |
64 |
64 |
74 |
31 |
41 |
41 |
51 |
6 |
42 |
10 |
4 |
2 |
17 |
M8×1.25 |
6 |
14 |
M5×0.8 |
32 |
41.5 |
51.5 |
51.5 |
61.5 |
59.5 |
69.5 |
69.5 |
79.5 |
34.5 |
44.5 |
44.5 |
54.5 |
7 |
50 |
12 |
4 |
3 |
18 |
M10×1.25 |
6 |
17 |
M6×1.0 |
40 |
43 |
53 |
53 |
63 |
71 |
81 |
81 |
91 |
36 |
46 |
46 |
56 |
7 |
58.5 |
12 |
4 |
3 |
28 |
M14×1.5 |
8 |
22 |
M8×1.25 |
50 |
47 |
57 |
57 |
67 |
75 |
85 |
85 |
95 |
38 |
48 |
48 |
58 |
9 |
71.5 |
15 |
5 |
4 |
28 |
M18×1.5 |
9 |
27 |
M10×1.5 |
63 |
51 |
61 |
61 |
71 |
79 |
89 |
89 |
99 |
42 |
52 |
52 |
62 |
9 |
84.5 |
15 |
5 |
4 |
28 |
M18×1.5 |
9 |
27 |
M10×1.5 |
80 |
62 |
72 |
72 |
82 |
95 |
105 |
105 |
115 |
51 |
61 |
61 |
71 |
11 |
104 |
20 |
6 |
5 |
33 |
M22×1.5 |
13 |
32 |
M14×1.5 |
100 |
73 |
83 |
83 |
93 |
111 |
121 |
121 |
131 |
61 |
71 |
71 |
81 |
12 |
124 |
20 |
7 |
5 |
38 |
M26×1.5 |
12 |
36 |
M18×1.5 |
缸徑/符號 |
L |
M |
N1 |
N2 |
O |
P1 |
P3 |
P4 |
R |
S |
T1 |
T2 |
V |
W |
X |
Y |
||
行程 |
S=5 | S>5 | S>5 | S>5 | ||||||||||||||
12 |
10 |
3 |
7.5 |
5 |
M5×0.8 |
雙邊: Φ6.5、牙: M5×0.8、通孔: Φ4.2 |
12 |
4.5 |
- |
25 |
16.3 |
23 |
6 |
5 |
- |
- |
||
16 |
11 |
3 |
8 |
5 |
5.5 |
M5×0.8 |
雙邊: Φ6.5、牙: M5×0.8、通孔: Φ4.2 |
12 |
4.5 |
- |
29 |
19.8 |
28 |
6 |
5 |
- |
- |
|
20 |
13 |
3 |
8.5 |
5.5 |
M5×0.8 |
雙邊: Φ6.5、牙: M5×0.8、通孔: Φ4.2 |
14 |
4.5 |
2 |
34 |
24 |
- |
8 |
6 |
11.2 |
10 |
||
25 |
17 |
3 |
9 |
5.5 |
M5×0.8 |
雙邊: Φ8.2、牙: M6×1、通孔: Φ4.6 |
15 |
5.5 |
2 |
40 |
28 |
- |
10 |
8 |
12 |
10 |
||
32 |
22 |
3 |
9 |
6.5 |
8 |
G1/8 |
雙邊: Φ8.2、牙: M6×1、通孔: Φ4.6 |
16 |
5.5 |
6 |
44 |
34 |
- |
12 |
10 |
18 |
14 |
|
40 |
28 |
3 |
9 |
7.5 |
G1/8 |
雙邊: Φ10、牙: M8×1.25、通孔: Φ6.7 |
20 |
7.5 |
6.5 |
52 |
40 |
- |
16 |
14 |
21 |
14 |
||
50 |
38 |
3 |
8 |
10.5 |
8 |
10.5 |
G1/4 |
雙邊: Φ11、牙: M8×1.25、通孔: Φ6.7 |
25 |
8.5 |
9.5 |
62 |
48 |
- |
20 |
17 |
29.5 |
19 |
63 80 100 |
40 45 55 |
3 |
9.5 |
11 |
9.5 |
11 |
G1/4 |
雙邊: Φ11、牙: M8×1.25、通孔: Φ6.7 |
25 |
8.5 |
9.5 |
75 |
60 |
- |
20 |
17 |
26 |
19 |
4 |
11.5 |
14 |
11.5 |
14 |
G3/8 |
雙邊: Φ15、牙: M12×1.75、通孔: Φ10.3 |
25 |
10.5 |
10 |
94 |
74 |
- |
25 |
22 |
36 |
26 |
||
4 |
15 |
20 |
15 |
18 |
G3/8 |
雙邊: Φ17.5、牙: M14×2、通孔: Φ11.3 |
30 |
13 |
10 |
114 |
90 |
|
32 |
27 |
35.5 |
26 |
缸徑/符號 |
A |
B |
C |
B1 |
D |
E |
F |
G |
H |
I |
J |
K |
K1 |
L |
M |
N1 |
||||
型式 |
標準型 |
附磁型 |
標準型 |
附磁型 |
標準型 |
附磁型 |
S=5 |
S>5 | ||||||||||||
12 |
27 |
37 |
51 |
61 |
17 |
27 |
5 |
- |
6 |
4 |
2 |
12 |
M5×0.8 |
4 |
8 |
M3×0.5 |
10 |
3 |
5.5 |
6.5 |
16 |
29.5 |
39.5 |
53.5 |
63.5 |
18.5 |
28.5 |
5.5 |
- |
6 |
4 |
2 |
12 |
M5×0.8 |
4 |
8 |
M3×0.5 |
11 |
3 |
6.5 |
7.5 |
20 |
30.5 |
40.5 |
60.5 |
70.5 |
19.5 |
29.5 |
5.5 |
36 |
8 |
4 |
1.5 |
15 |
M6×1.0 |
5 |
10 |
M4×0.7 |
13 |
3 |
7.5 |
|
25 |
33 |
43 |
67 |
77 |
21 |
31 |
6 |
42 |
10 |
4 |
2 |
17 |
M8×1.25 |
6 |
14 |
M5×0.8 |
17 |
3 |
8 |
|
32 |
38.5 |
48.5 |
74.5 |
84.5 |
24.5 |
34.5 |
7 |
50 |
12 |
4 |
3 |
18 |
M10×1.25 |
6 |
17 |
M6×1.0 |
22 |
3 |
8 |
9 |
40 |
40 |
50 |
96 |
106 |
26 |
36 |
7 |
58.5 |
12 |
4 |
3 |
28 |
M14×1.5 |
8 |
22 |
M8×1.25 |
28 |
3 |
8 |
10 |
50 |
46 |
56 |
102 |
112 |
28 |
38 |
9 |
71.5 |
15 |
5 |
4 |
28 |
M18×1.5 |
9 |
27 |
M10×1.5 |
38 |
3 |
8 |
10.5 |
63 |
50 |
60 |
106 |
116 |
32 |
42 |
9 |
84.5 |
15 |
5 |
4 |
28 |
M18×1.5 |
9 |
27 |
M10×1.5 |
40 |
3 |
9.5 |
11 |
80 |
63 |
73 |
129 |
139 |
41 |
51 |
11 |
104 |
20 |
6 |
5 |
33 |
M22×1.5 |
13 |
32 |
M14×1.5 |
45 |
4 |
11.5 |
14 |
100 |
75 |
85 |
151 |
161 |
51 |
61 |
12 |
124 |
20 |
7 |
5 |
38 |
M26×1.5 |
12 |
36 |
M18×1.5 |
55 |
4 |
15 |
20 |
缸徑/符號 |
O |
P1 |
P3 |
P4 |
R |
S |
T1 |
T2 |
V |
W |
X | Y |
12 |
M5×0.8 |
雙邊: Φ6.5、牙: M5×0.8、通孔: Φ4.2 |
12 |
4.5 |
- |
25 |
16.3 |
23 |
6 |
5 |
- |
- |
16 |
M5×0.8 |
雙邊: Φ6.5、牙: M5×0.8、通孔: Φ4.2 |
12 |
4.5 |
- |
29 |
19.8 |
28 |
6 |
5 |
- |
- |
20 |
M5×0.8 |
雙邊: Φ6.5、牙: M5×0.8、通孔: Φ4.2 |
14 |
4.5 |
2 |
34 |
24 |
- |
8 |
6 |
11.2 |
10 |
25 |
M5×0.8 |
雙邊: Φ8.2、牙: M6×1、通孔: Φ4.6 |
15 |
5.5 |
2 |
40 |
28 |
- |
10 |
8 |
12 |
10 |
32 |
G1/8 |
雙邊: Φ8.2、牙: M6×1、通孔: Φ4.6 |
16 |
5.5 |
6 |
44 |
34 |
- |
12 |
10 |
18 |
14 |
40 |
G1/8 |
雙邊: Φ10、牙: M8×1.25、通孔: Φ6.7 |
20 |
7.5 |
6.5 |
52 |
40 |
- |
16 |
14 |
21 |
14 |
50 |
G1/4 |
雙邊: Φ11、牙: M8×1.25、通孔: Φ6.7 |
25 |
8.5 |
9.5 |
62 |
48 |
- |
20 |
17 |
29.5 |
19 |
63 |
G1/4 |
雙邊: Φ 11、 牙: M8×1.25、 通孔: Φ 6.7 |
25 |
8.5 |
9.5 |
75 |
60 |
- |
20 |
17 |
26 |
19 |
80 |
G3/8 |
雙邊: Φ15、牙: M12×1.75、通孔: Φ10.3 |
25 |
10.5 |
10 |
94 |
74 |
- |
25 |
22 |
36 |
26 |
100 |
G3/8 |
雙邊: Φ 17.5、 牙: M14×2、 通孔: Φ 11.3 |
30 |
13 |
10 |
114 |
90 |
- |
32 |
27 |
35.5 |
26 |
缸徑/符號 |
A |
B |
C |
B1 |
D |
E |
F |
G |
H |
I |
J | K |
K1 |
L |
M |
N1 |
||||
型式 |
標準型 |
附磁型 |
標準型 |
附磁型 |
標準型 |
附磁型 |
S=5 |
S>5 |
||||||||||||
12 |
41 |
51 |
53 |
63 |
17 |
27 |
5 |
- |
6 |
4 |
2 |
12 |
M5×0.8 |
4 |
8 |
M3×0.5 |
10 |
3 |
5.5 |
6.5 |
16 |
43 |
53 |
55 |
65 |
18.5 |
28.5 |
5.5 |
- |
6 |
4 |
2 |
12 |
M5×0.8 |
4 |
8 |
M3×0.5 |
111 |
3 |
6.5 |
7.5 |
20 |
47.5 |
57.5 |
62.5 |
72.5 |
19.5 |
29.5 |
5.5 |
36 |
8 |
4 |
1.5 |
15 |
M6×1.0 |
5 |
10 |
M4×0.7 |
13 |
3 |
7.5 |
|
25 |
53 |
63 |
70 |
80 |
21 |
31 |
6 |
42 |
10 |
4 |
2 |
17 |
M8×1.25 |
6 |
14 |
M5×0.8 |
17 |
3 |
8 | |
32 |
61.5 |
71.5 |
79.5 |
89.5 |
24.5 |
34.5 |
7 |
50 |
12 |
4 |
3 |
18 |
M10×1.25 |
6 |
17 |
M6×1.0 |
22 |
3 |
8 |
9 |
40 |
64 |
74 |
92 |
102 |
26 |
36 |
7 |
58.5 |
12 |
4 |
3 |
28 |
M14×1.5 |
8 |
22 |
M8×1.25 |
28 |
3 |
8 |
10 |
50 |
70 |
80 |
98 |
108 |
28 |
38 |
9 |
71.5 |
15 |
5 |
4 |
28 |
M18×1.5 |
9 |
27 |
M10×1.5 |
38 |
3 |
8 |
10.5 |
63 |
74 |
84 |
102 |
112 |
32 |
42 |
9 |
84.5 |
15 |
5 |
4 |
28 |
M18×1.5 |
9 |
27 |
M10×1.5 |
40 |
3 |
9.5 |
11 |
80 |
92.5 |
102.5 |
125.5 |
135.5 |
41 |
51 |
11 |
104 |
20 |
6 |
5 |
33 |
M22×1.5 |
13 |
32 |
M14×1.5 |
45 |
4 |
11.5 |
14 |
100 |
110.5 |
120.5 |
148.5 |
158.5 |
51 |
61 |
12 |
124 |
20 |
7 |
5 |
38 |
M26×1.5 |
12 |
36 |
M18×1.5 |
55 |
4 |
15 |
20 |
缸徑/符號 |
O |
P1 |
P3 |
P4 |
Q |
R |
S |
T1 |
T2 |
V |
W |
X |
Y |
12 |
M5×0.8 |
雙邊: Φ6.5、牙: M5×0.8、通孔: Φ4.2 |
12 |
4.5 |
17 |
- |
25 |
16.3 |
23 |
6 |
5 |
- |
- |
16 |
M5×0.8 |
雙邊: Φ6.5、牙: M5×0.8、通孔: Φ4.2 |
12 |
4.5 |
17 |
- |
29 |
19.8 |
28 |
6 |
5 |
- |
- |
20 |
M5×0.8 |
雙邊: Φ6.5、牙: M5×0.8、通孔: Φ4.2 |
14 |
4.5 |
21 |
2 |
34 |
24 |
- |
8 |
6 |
11.2 |
10 |
25 |
M5×0.8 |
雙邊: Φ8.2、牙: M6×1、通孔: Φ4.6 |
15 |
5.5 |
24 |
2 |
40 |
28 |
- |
10 |
8 |
12 |
10 |
32 |
G1/8 |
雙邊: Φ8.2、牙: M6×1、通孔: Φ4.6 |
16 |
5.5 |
27 |
6 |
44 |
34 |
- |
12 |
10 |
18 |
14 |
40 |
G1/8 |
雙邊: Φ10、牙: M8×1.25、通孔: Φ6.7 |
20 |
7.5 |
28 |
6.5 |
52 |
40 |
z: |
16 |
14 |
21 |
14 |
50 |
G1/4 |
雙邊: Φ11、牙: M8×1.25、通孔: Φ6.7 |
25 |
8.5 |
29 |
9.5 |
62 |
48 |
- |
20 |
17 |
29.5 |
19 |
63 |
G1/4 |
雙邊: Φ 11、 牙: M8×1.25、 通孔: Φ 6.7 |
25 |
8.5 |
29 |
9.5 |
75 |
60 |
- |
20 |
17 |
26 |
19 |
80 |
G3/8 |
雙邊: Φ15、牙: M12×1.75、通孔: Φ10.3 |
25 |
10.5 |
35.5 |
10 |
94 |
74 |
- |
25 |
22 |
36 |
26 |
100 |
G3/8 |
雙邊: Φ 17.5、 牙: M14×2、 通孔: Φ 11. |
30 |
13 |
42.5 |
10 |
114 |
90 |
- |
32 |
27 |
35.5 |
26 |
缸徑/符號 |
A |
B |
C |
B1 |
D |
E |
F |
G |
H |
I |
J |
K |
K1 |
L |
M |
N1 |
||||
型式 |
標準型 |
附磁型 |
標準型 |
附磁型 |
標準型 |
附磁型 |
S=5 |
S>5 | ||||||||||||
12 |
41 |
51 |
53 |
63 |
17 |
27 |
5 |
- |
6 |
4 |
2 |
12 |
M5×0.8 |
4 |
8 |
M3×0.5 |
10 |
3 |
5.5 |
6.5 |
16 |
43 |
53 |
55 |
65 |
18.5 |
28.5 |
5.5 |
- |
6 |
4 |
2 |
12 |
M5×0.8 |
4 |
8 |
M3×0.5 |
11 |
3 |
6.5 |
7.5 |
20 |
47.5 |
57.5 |
62.5 |
72.5 |
19.5 |
29.5 |
5.5 |
36 |
8 |
4 |
1.5 |
15 |
M6×1.0 |
5 |
10 |
M4×0.7 |
13 |
3 |
7.5 |
|
25 |
53 |
63 |
70 |
80 |
21 |
31 |
6 |
42 |
10 |
4 |
2 |
17 |
M8×1.25 |
6 |
14 |
M5×0.8 |
17 |
3 |
8 |
|
32 |
61.5 |
71.5 |
79.5 |
89.5 |
24.5 |
34.5 |
7 |
50 |
12 |
4 |
3 |
18 |
M10×1.25 |
6 |
17 |
M6×1.0 |
22 |
3 |
8 |
9 |
40 |
64 |
74 |
92 |
102 |
26 |
36 |
7 |
58.5 |
12 |
4 |
3 |
28 |
M14×1l.5 |
8 |
22 |
M8×1.25 |
28 |
3 |
8 |
10 |
50 |
70 |
80 |
98 |
108 |
28 |
38 |
9 |
71.5 |
15 |
5 |
4 |
28 |
M18×1.5 |
9 |
27 |
M10×1.5 |
38 |
3 |
8 |
10.5 |
63 |
74 |
84 |
102 |
112 |
32 |
42 |
9 |
84.5 |
15 |
5 |
4 |
28 |
M18×1.5 |
9 |
27 |
M10×1.5 |
40 |
3 |
9.5 |
11 |
80 |
92.5 |
102.5 |
125.5 |
135.5 |
41 |
51 |
11 |
104 |
20 |
6 |
5 |
33 |
M22×1.5 |
13 |
32 |
M14×1.5 |
45 |
4 |
11.5 |
14 |
100 |
110.5 |
120.5 |
148.5 |
158.5 |
51 |
61 |
12 |
124 |
20 |
7 |
5 |
38 |
M26×1.5 |
12 |
36 |
M18×1.5 |
55 |
4 |
15 |
20 |
缸徑/符號 |
O |
P1 |
P3 |
P4 |
m |
R |
S |
T1 |
T2 |
V |
W |
X |
Y |
12 |
M5×0.8 |
雙邊: Φ6.5、牙: M5×0.8、通孔: Φ4.2 |
12 |
4.5 |
17 |
- |
25 |
16.3 |
23 |
6 |
5 |
- |
- |
16 |
M5×0.8 |
雙邊: Φ6.5、牙: M5×0.8、通孔: Φ4.2 |
12 |
4.5 |
17 |
- |
29 |
19.8 |
28 |
6 |
5 |
- |
- |
20 |
M5×0.8 |
雙邊: Φ6.5、牙: M5×0.8、通孔: Φ4.2 |
14 |
4.5 |
21 |
2 |
34 |
24 |
- |
8 |
6 |
11.2 |
10 |
25 |
M5×0.8 |
雙邊: Φ8.2、牙: M6×1、通孔: Φ4.6 |
15 |
5.5 |
24 |
2 |
40 |
28 |
- |
10 |
8 |
12 |
10 |
32 |
G1/8 |
雙邊: Φ8.2、牙: M6×1、通孔: Φ4.6 |
16 |
5.5 |
27 |
6 |
44 |
34 |
- |
12 |
10 |
18 |
14 |
40 |
Gl/8 |
雙邊: Φ10、牙: M8×1.25、通孔: Φ6.7 |
20 |
7.5 |
28 |
6.5 |
52 |
40 |
- |
16 |
14 |
21 |
14 |
50 |
G1/4 |
雙邊: Φ11、牙: M8×1.25、通孔: Φ6.7 |
25 |
8.5 |
29 |
9.5 |
62 |
48 |
- |
20 |
17 |
29.5 |
19 |
63 |
G1/4 |
雙邊: Φ 11、 牙: M8×1.25、 通孔: Φ 6.7 |
25 |
8.5 |
29 |
9.5 |
75 |
60 |
- |
20 |
17 |
26 |
19 |
80 |
G3/8 |
雙邊: Φ15、牙: M12×1.75、通孔: Φ10.3 |
25 |
10.5 |
35.5 |
10 |
94 |
74 |
- |
25 |
22 |
36 |
26 |
100 |
G3/8 |
雙邊: Φ 17.5、 牙: M14×2、 通孔: Φ 11.3 |
30 |
13 |
42.5 |
10 |
114 |
90 |
- |
32 |
27 |
35.5 |
26 |
